Trigonometric Ratios

Trigonometric ratios are relationships between the angles and sides of a right-angled triangle. They are fundamental in solving geometric and real-world problems involving angles.





1. Defining Trigonometric Ratios

Consider a right-angled triangle with:

  • Hypotenuse (r): The longest side opposite the right angle.
  • Opposite (O): The side opposite the given angle θtheta.
  • Adjacent (A): The side next to the given angle θtheta.





Primary Trigonometric Ratios

  • Sine (sin θ):
    sin(θ) = Opposite / Hypotenuse = O / r

  • Cosine (cos θ):
    cos(θ) = Adjacent / Hypotenuse = A / r

  • Tangent (tan θ):
    tan(θ) = Opposite / Adjacent = O / A





Reciprocal Trigonometric Ratios

  • Cosecant (csc θ):
    csc(θ) = 1 / sin(θ) = r / O

  • Secant (sec θ):
    sec(θ) = 1 / cos(θ) = r / A

  • Cotangent (cot θ):
    cot(θ) = 1 / tan(θ) = A / O





2. Trigonometric Ratios for Special Angles

Angle θtheta sin⁡θsin theta cos⁡θcos theta tan⁡θtan theta
0° 0 1 0
30° 12 1/2 32 + √3/2 13 + 1/√3
45° 22 + √2/2 22 + (√2/2) 1
60° 32 + (√3/2) 12 1/2 3√3
90° 1 0 Undefined







3. Applications of Trigonometric Ratios

  • Navigation & Aviation: Used to calculate angles and distances.
  • Architecture & Engineering: Designing buildings and bridges.
  • Physics & Astronomy: Measuring forces and celestial distances.



Waves

Amplitude
This is the maximum displacement of the wave above or below the x axis.
Period
The interval after which the wave repeats itself





Transformations of waves

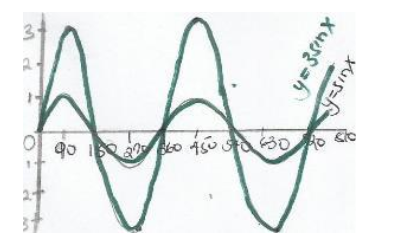

The graphs of y = sin x and y = 3 sin x can be drawn on the same axis. The table below gives the corresponding values of sin x and 3 sin x for



Angle (°) sin(x) 3 sin(x)
0 0 0
30 0.50 1.50
60 0.87 2.61
90 1.00 3.00
120 0.87 2.61
150 0.50 1.50
180 0 0
210 -0.50 -1.50
240 -0.87 -2.61
270 -0.50 -1.50
300 -0.87 -2.61
330 -0.50 -1.50
360 0 0
390 0.50 1.50
420 0.87 2.61
450 1.00 3.00
480 0.87 2.61
510 0.50 1.50
540 0 0
570 -0.50 -1.50
600 -0.87 -2.61
630 -1.00 -3.00
660 -0.87 -2.61
690 -0.50 -1.50
720 0 0





The wave of y = 3 sin x can be obtained directly from the graph of y = sin x by applying a stretch scale
factor 3 , x axis invariant .





Note;
• The amplitude of y= 3sinx is y =3 which is three times that of y = sin x which is y =1.
• The period of the both the graphs is the same that is or 2









Example

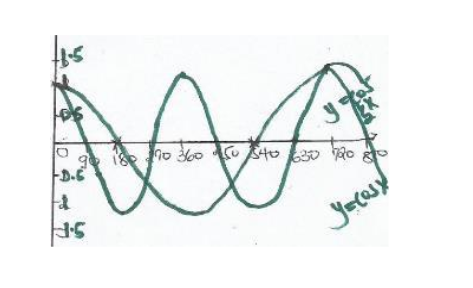

Draw the waves y = cos x and y = cos . We obtain y = cos from the graph y = cos x by applying a stretch of factor 2 with y axis invariant.

Note;
• The amplitude of the two waves are the same.
• The period of y = cos is that is, twice the period of y = cos x
